Products

Disaster Safety Solution

"That Enables Location Tracking and Automatic Reporting"

CARBONMONOXIDE SAFETY ALARMS

  • Product Overview
  • Background
  • Product Features
  • Product Specifications
  • Expected Results

Background

사업배경 1

01Continued Carbon Monoxide Poisoning Incidents

Occurrence of carbon monoxide poisoning incidents from heating and cooking inside the tent due to the increase of camping population

Occurrence of carbon monoxide poisoning incidents due to boiler and other heating appliances at pensions and accommodations

Occurrence of carbon monoxide poisoning incidents at homes and Korean dry saunas

사업배경 2

02Increase of Interest Toward Carbon Monoxide Alarms

Proposal of a bill for the mandatory installation of carbon monoxide alarms at pension, etc.

Sudden increase of the carbon monoxide alarm sales after the Gangneung pension incident in 2018

사업배경 3

03Mandatory Installation of Carbon Monoxide Alarms

Mandatory installation of the alarm at all facilities that use gas boiler including regular accommodations, private house lodges of rural/fishing villages and private house lodges of urban areas where individual heaters such as gas/oil/briquette boiler is installed

Product Features

  • Sounds an alarm when carbon monoxide is detected
  • Indicates the carbon monoxide value on the screen
  • Check on the smart phone at all times with Bluetooth connection
  • Sends the emergency rescue signal automatically to the contact number stored in advance if carbon monoxide higher than a certain level is detected
  • Secures reliability by operating a dual IoT communication to prepare for the disconnection of the BLE communication
  • Provides the application classified into private and public uses
  • Sends a text message of the relevant details to the stored number and provides a push message from the user's application in order to prevent accidents even if small quantity is detected
  • AC power and battery use
  • Sounds an alarm + sends mobile phone notification + sends rescue request text message at the same time if more than a specific value is detected
  • Sends relevant details even to the administrator's phone number if used in a public area
  • Measures the location automatically using GPS

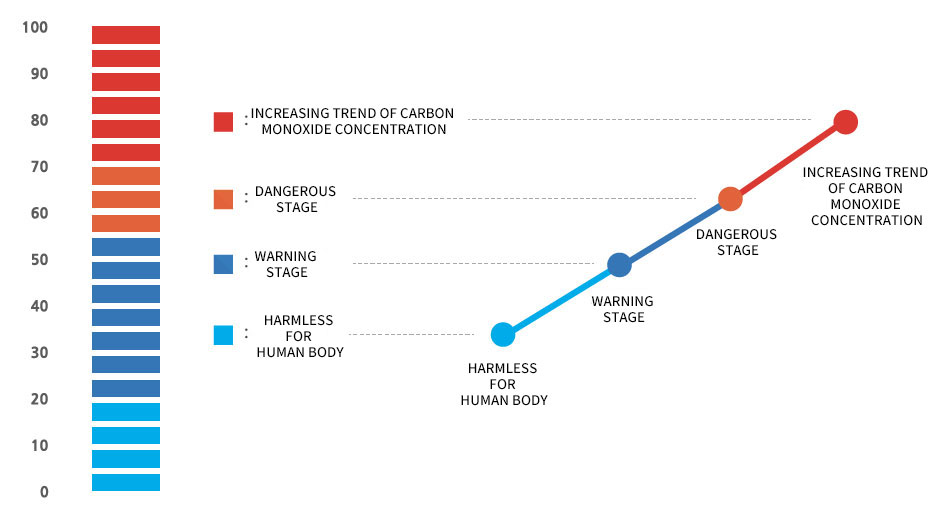

Data-Based Future Prediction System

The poisoning incidents can be prevented by informing the danger in advance by predicting the future risk level after analyzing the measured values periodically based on the current carbon monoxide concentration

데이터기반 미래예측시스템

Even if the situation is harmless for human body, it notifies by predicting in advance on how many minutes later it will reach the dangerous stage from the warning stage after analyzing the increasing trend of the carbon monoxide concentration after storing the relevant data.

Product Specifications

제품 사양
Type Instant warning type, diffusion type, standalone type
Detection Method Semiconductor method
Target Gas for Application Carbon dioxide (CO gas)
Display of Warning Flickering LED and buzzer sound (automatic restoration type)
Concentration of Warning 0.006 ~ 0.055% (60PPM ~ 550PM)
Rated Voltage AC 220V / 60Hz
Working Temperature/Humidity -20℃ +40℃/ Under RH +85%
Power Consumption 2.7W
External Output DC 6~ 12V (20mA)
Initial Stabilization Time 60sec
Places Used Ordinary homes and apartments

Expected Results

  • 기대효과 1

    Prevention of carbon monoxide poisoning

    Prevention of carbon monoxide poisoning & fast response at pensions and homes

  • 기대효과 2

    Safe heating

    Promotion of health by detecting the carbon monoxide generated from other heating types

  • 기대효과 3

    Various usability

    Can be used at various places by attaching various sensors in the future

Examples of Usage
  • 설치 사진1

    Pension

  • 설치 사진2

    Camp Sites

  • 설치 사진3

    Camping

  • 설치 사진4

    Tent

  • 설치 사진5

    House

  • 설치 사진6

    Resort

  • 설치 사진7

    Training Center
